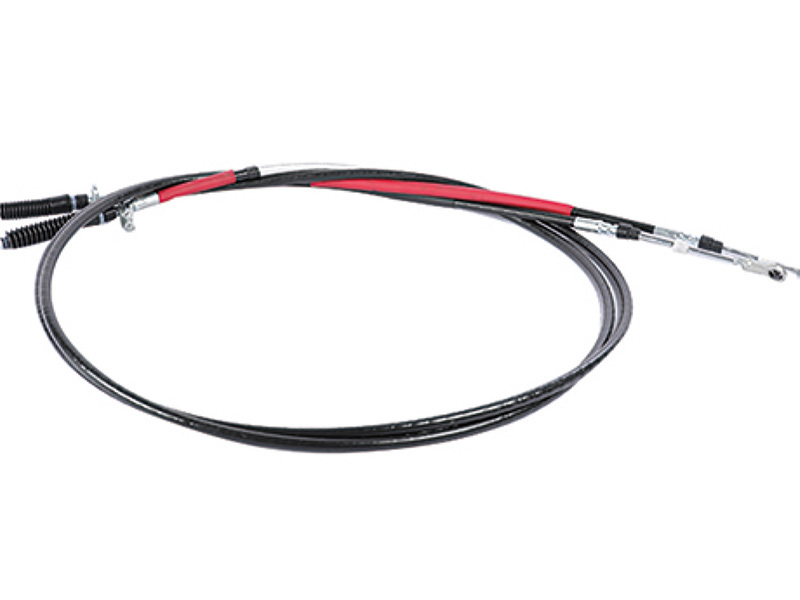

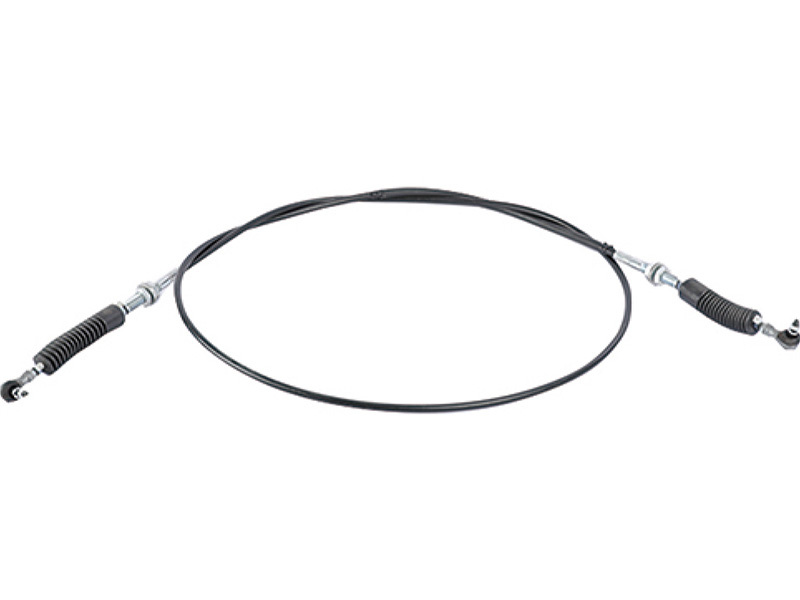

Name:Throttle cable assembly

Technical Requirements:
1. No chamfer C1.
2. Customized according to the drawings, and the dimensions not marked shall be determined by the outsourcing manufacturer according to the actual situation.
3. The shaft core is coated with grease, so it can be pushed and pulled flexibly.
4. The flexible shaft meets the requirements of QC/T29101-1992.

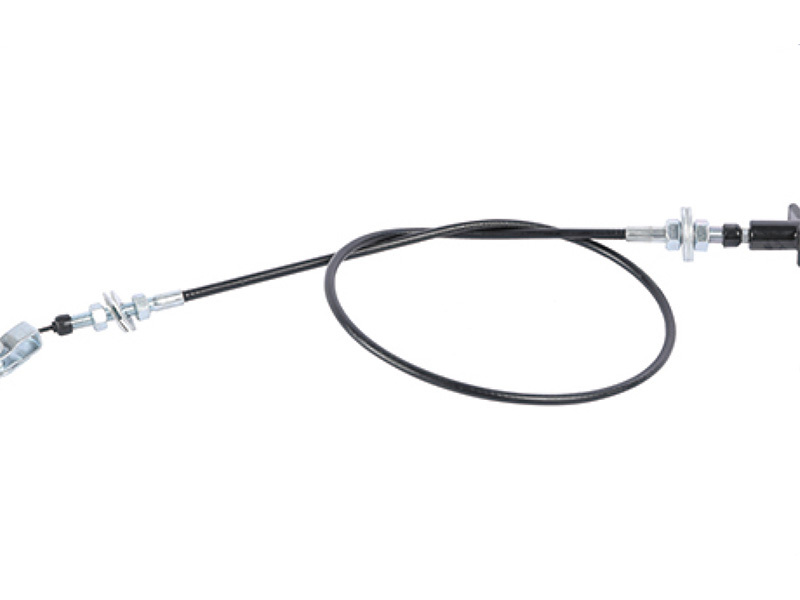

Name:Throttle cable assembly

Technical Requirements:
1. The appearance of the controller is clean and tidy, without scratches or peeling off of the plastic layer
2. Evenly apply grease to the rotating parts
3. The controller rotates flexibly without stagnation
4. Plastic spraying on the surface of the controller
5. Working stroke>50mm

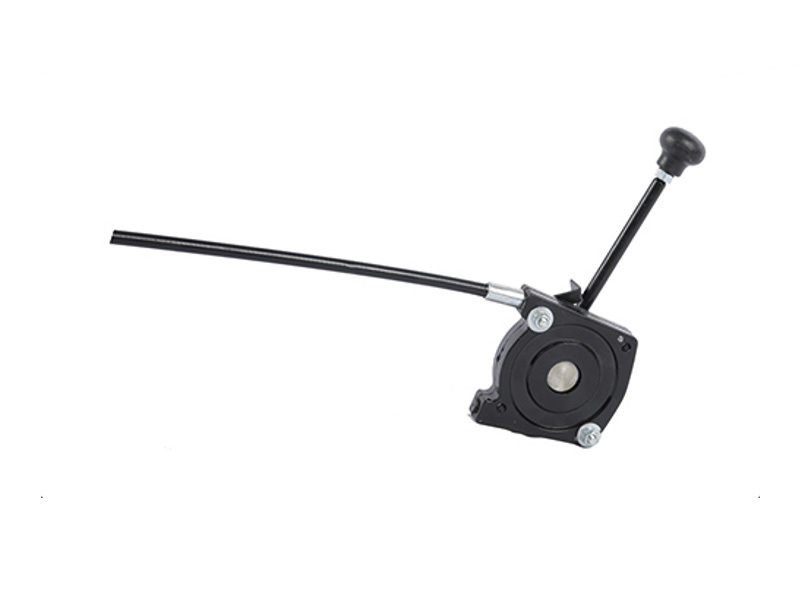

Name:Hand throttle assembly

Technical Requirements:
1. The surface of the high and low gear control rod is sprayed with plastic.
2. The stroke of the flexible shaft is >50mm
3. Pull-off force between flexible shaft protection tube and joint > 3000N.
4. Pull-off force between mandrel and joint > 5000N.
5. The surface is sprayed with black paint to ensure the flexible and reliable rotation of the mechanism.
6. The welding part is guaranteed to be firmly welded without welding defects.
7. The length of the flexible shaft from end A to end B is 1200±5mm.

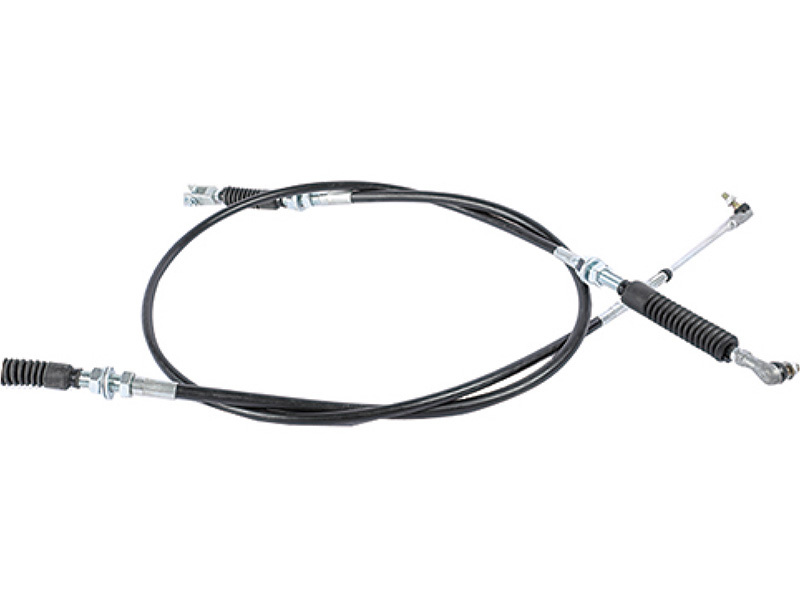

Name:Throttle cable assembly

Technical Requirements:
1. The flexible shaft can be pushed and pulled smoothly, and no stagnation is strictly prohibited.
2. The pull-off force of the casing joint is greater than 3000N.
3. The pull-off force of the wire rope joint is greater than 5000N.
4. Flexible shaft stroke 60mm
5. The soft shaft core is rust-proofed and lubricated with grease 880F
6. Pack according to the packaging requirements. Each batch of goods is attached with a tensile test report and a self-inspection report.
7. Other technical requirements are in accordance with GB/T8407-1996
<Push-pull flexible shaft for construction machinery>

The company specializes in the development and production of hydraulic control mechanism assembly, transmission control assembly, parking brake assembly, air tank, brake, push-pull flexible shaft, electronically controlled accelerator pedal, electronically controlled handle and various structural parts.

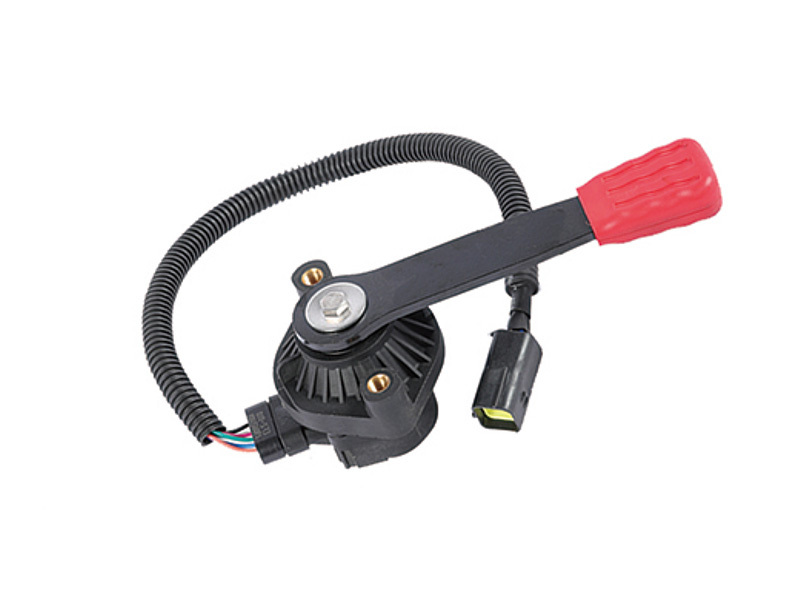

Name:Electronic Throttle

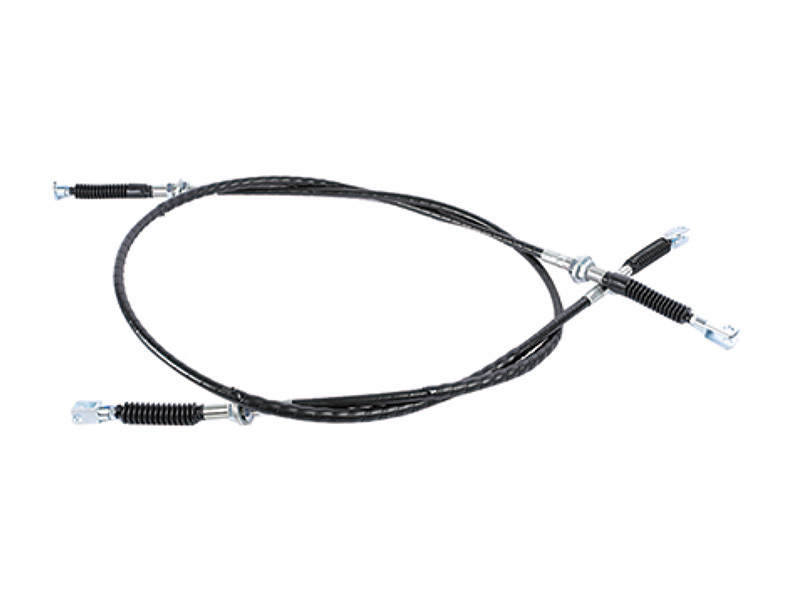

Name:flexible shaft

Technical Requirements:
1. The dimensions not marked are determined by the manufacturer according to the actual situation.
2. Flexible shaft stroke H=30.
3. All locking parts should be firm and reliable.
4. Flexible shaft pushes and pulls flexibly without stagnation.
5. The remaining technical requirements shall be implemented in accordance with JB/T8407-2014 "Push-Pull Flexible Shaft for Construction Machinery".
6. When supplying, you need to bring your own pin shaft, pad and cotter pin, etc.

The company specializes in the development and production of hydraulic control mechanism assembly, transmission control assembly, parking brake assembly, air tank, brake, push-pull flexible shaft, electronically controlled accelerator pedal, electronically controlled handle and various structural parts.

Name:Electronic Throttle

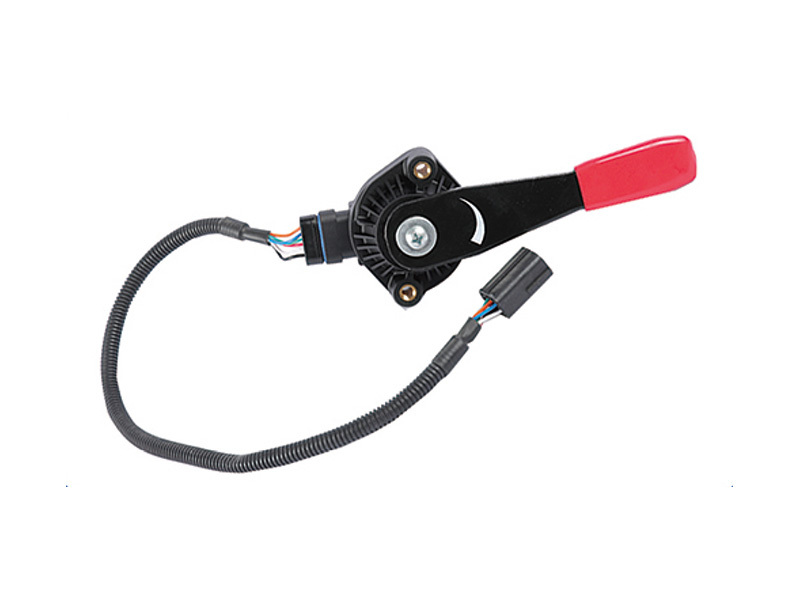

Name:Electronic Throttle

Technical Requirements:
1. Working environment temperature: -40℃~+80℃.
2. Sensor power supply voltage 5Vdc+2%, working current <10mA (single circuit), <20mA (dual circuit).
3. Reverse voltage polarity protection, linearity accuracy ±2%, synchronous deviation ±0.05V.

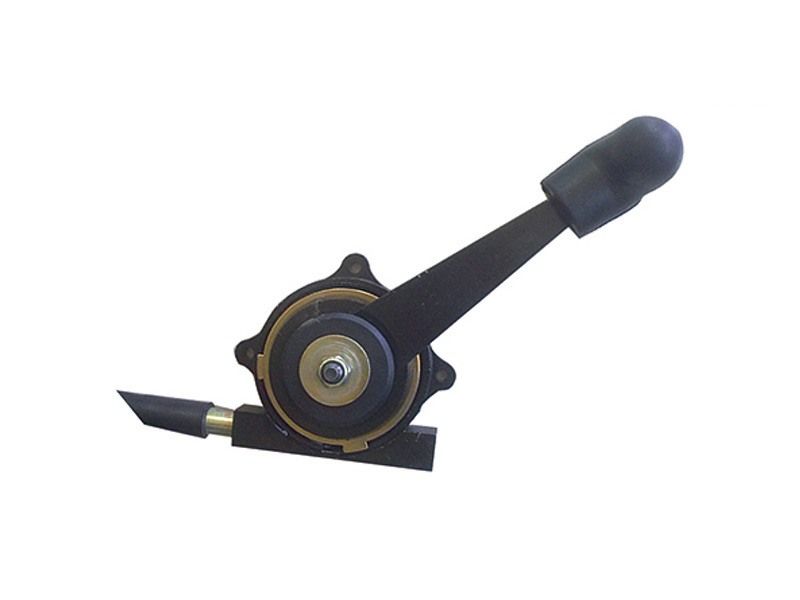

Name:Hand throttle assembly

Technical Requirements:
1. The surface of the manipulator is sprayed with black topcoat, and the appearance is clean and bright without damage.
2. The handle is flexible and free from stagnation.
3. Control flexible shaft travel >40mm
4. The pull-off force between the flexible shaft protection tube and the joint is >160N.
5. Pull-off force between mandrel and joint >5000N.

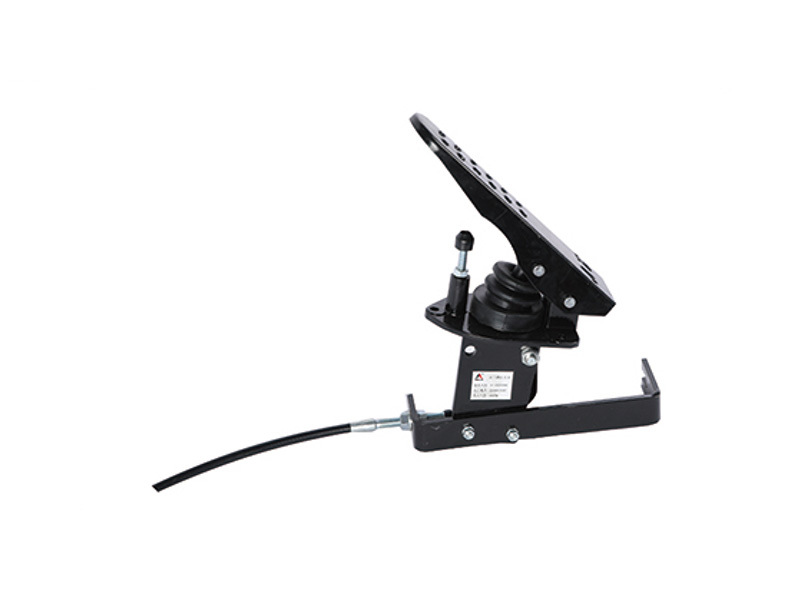

Name:Gas Pedal

Technical Requirements:
1. The stroke is not less than 60
2. Stamping: D145/date/drawing number, date with 3 digits such as "June 2009" into "906 "
3. When shipping, a self-inspection report is attached to each box.
4. The state shown in the picture is the pedal free state.
5. With 9D851-05A020000B0 flexible shaft

Name:Electronic Throttle

Technical Requirements:
1. Working environment temperature: -40℃~+80℃.
2. The sensor power supply voltage is 5Vdc±2%, and the operating current is <10mA (single circuit), <20mA (dual circuit).
3. Reverse voltage polarity protection, linearity accuracy ±2%, synchronous deviation ±0.05V.
4. Vibration test: 1~50Hz (frequency 1~10Hz, amplitude 25/f²; frequency 10~50Hz, amplitude 250/f²); impact: 30m/ s.

Name:Throttle Assembly

Technical Requirements:
1. The parts of the controller are required to be connected tightly and reliably.
2. The push-pull operation is smooth and free of stagnation.
3. The rotating parts of the controller require good sealing.
4. The surface of the controller is neat and beautiful, and the spray is black.
